The Architectural Resilience of Steel: A Technical Analysis of Modern Metal Envelopes

Top metal siding plans the utilization of metal as a primary cladding material represents a significant pivot in contemporary architectural strategy, moving away from the ephemeral nature of organic siding materials toward a philosophy of permanent asset protection. While wood and vinyl have dominated the residential landscape for decades due to their lower initial cost and ease of installation, metal siding has historically been the silent backbone of industrial and commercial infrastructure. Today, this material is undergoing a sophisticated re-integration into high-end residential and institutional design, driven by a growing demand for fire-resistant, low-maintenance, and thermally efficient building envelopes.

The complexity of a metal siding system is often underestimated. It is not merely a decorative skin but a complex assembly that must manage thermal bridging, hydrostatic pressure, and the relentless cycle of expansion and contraction inherent in metallic elements. A failure to account for the coefficient of thermal expansion in steel or aluminum can lead to “oil-canning”—a visible waviness in the flat surfaces of the panels that signals a structural misunderstanding of the material’s behavior. Consequently, selecting a siding plan is an exercise in engineering as much as it is in aesthetics.

Modern metal cladding systems have evolved into highly engineered “rainscreen” assemblies. These systems decouple the water-shedding surface from the air and moisture barrier of the building, creating a ventilated cavity that allows the structure to “breathe” while effectively neutralizing wind-driven rain. As we explore the strategic deployment of these materials, we must move beyond the superficial metrics of color and texture to examine the metallurgical properties, coating chemistries, and fastener geometries that define a truly resilient exterior. This analysis serves as a definitive reference for the integration of metal into the long-term lifecycle of a building.

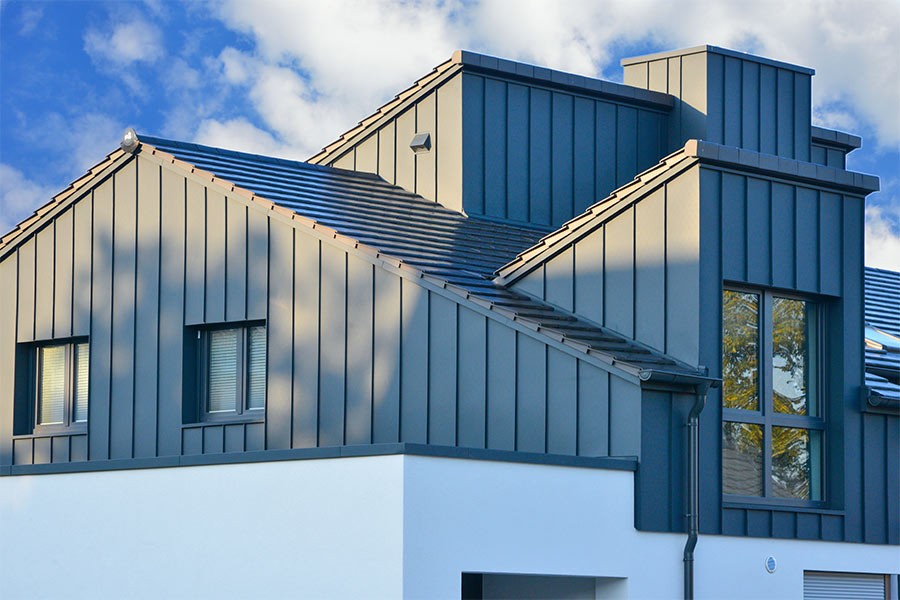

top metal siding plans

To accurately define top metal siding plans, one must view the cladding as a component of a larger building science ecosystem. A “plan” in this context is not a simple choice of material but a comprehensive specification that includes the substrate preparation, the drainage plane design, and the thermal break strategy. The most common misunderstanding in this domain is the belief that metal is a “set it and forget it” material. While metal is exceptionally durable, its performance is entirely dependent on the integrity of its fasteners and the chemistry of its factory-applied coatings.

From a multi-perspective standpoint, a top-tier siding plan must balance “Aesthetic Intent” with “Environmental Load.” For instance, a plan designed for a coastal environment must prioritize aluminum or high-grade stainless steel with a PVDF (polyvinylidene fluoride) coating to resist chloride-induced corrosion. Conversely, a plan for a high-altitude mountain retreat might focus on heavy-gauge corrugated steel that can withstand high snow loads and intense UV radiation without degrading. The risk of oversimplification lies in treating metal as a monolithic category; the difference between 29-gauge agricultural panels and 22-gauge architectural standing seam is vast in terms of both structural capacity and longevity.

Furthermore, a sophisticated plan accounts for the “Return-to-Service” and “Lifecycle Cost.” Metal siding often carries a higher initial capital expenditure compared to fiber cement or engineered wood, but its value proposition is found in the avoidance of repetitive maintenance cycles. A definitive plan includes a clear maintenance schedule and an understanding of how the metal will age—whether through the intentional oxidation of weathering steel (Corten) or the sustained gloss of a high-performance fluoropolymer finish.

Deep Contextual Background: The Evolution of the Metal Shell

Top metal siding plans the history of metal siding is inextricably linked to the industrial revolution and the need for rapid, fireproof construction. Early applications were primarily functional: corrugated iron sheets used for factories and barns in the 19th century. These early materials were prone to rapid oxidation until the advent of galvanization—the process of coating steel in zinc to provide sacrificial protection. This was the first major leap in the systemic evolution of metal cladding.

In the mid-20th century, the development of aluminum siding offered a lightweight, rust-proof alternative for the post-war housing boom. However, these early residential products were thin and susceptible to denting, leading to a lingering (and now outdated) perception of metal as a “cheap” or “industrial” choice. The real shift occurred in the 1980s and 90s with the introduction of architectural-grade coatings like Kynar 500. These resin-based finishes allowed for vibrant colors and metallic sheens that could withstand decades of sun exposure without fading or chalking.

Today, we are in the era of the “Integrated Metal Envelope.” Metal siding is no longer just a sheet screwed to a wall; it is a component of Insulated Metal Panels (IMPs) or sophisticated rainscreen systems that incorporate continuous insulation and air barriers. This evolution reflects a broader trend in building science toward high-performance enclosures that minimize energy loss and maximize the durability of the structural frame.

Conceptual Frameworks and Mental Models Top Metal Siding Plans

Strategic planning for metal siding relies on several engineering mental models:

1. The Thermal Bridge Model

Metal is a highly conductive material. This model treats every fastener and every contact point between the metal siding and the building frame as a potential “leak” for heat. A top-tier plan incorporates thermal breaks—non-conductive spacers or continuous exterior insulation—to ensure the metal cladding doesn’t compromise the building’s energy efficiency.

2. The Sacrificial Anode Framework

This chemistry-based model is essential for understanding corrosion protection. In galvanized or Galvalume systems, the zinc (and aluminum) coating is designed to corrode instead of the underlying steel. Understanding the “Sacrificial Rate” is key to predicting when a metal siding system will eventually require intervention.

3. The Pressure-Equalized Rainscreen (PER)

This fluid dynamics model views the siding not as a waterproof seal but as a pressure regulator. By allowing air to move freely behind the metal panels, the system equalizes the pressure between the outside and the inside of the cavity, which effectively “sucks” water out of the wall rather than allowing it to be pushed in by wind.

Key Categories of Metal Siding Systems and Trade-offs

Decision Logic: Material Selection

The decision-making process for a metal siding plan should follow a “Zone-Based” logic. In “High-Impact Zones” (ground level, public walkways), thicker 22-gauge steel or heavy aluminum plate is necessary to resist denting. In “High-Exposure Zones” (upper stories, coastal fronts), the focus shifts to the chemical stability of the coating and the integrity of the hidden fastener systems.

Detailed Real-World Scenarios Top Metal Siding Plans

The High-Deserts of the American Southwest

A residential project facing intense UV and drastic diurnal temperature swings.

• Constraint: Rapid expansion/contraction causes fasteners to back out over time.

• Decision: A concealed fastener standing seam system using Galvalume-coated steel.

• Failure Mode: Using an exposed-fastener corrugated system would lead to “elongated” screw holes as the metal moves, eventually allowing moisture into the sheathing.

Coastal Institutional Facility

A school building located within a mile of the Atlantic coast.

• Constraint: Salt spray and high humidity.

• Decision: 0.040″ thick aluminum panels with a high-build PVDF coating.

• Logic: Aluminum forms its own protective oxide layer even if the coating is scratched, whereas steel would begin to edge-rust immediately.

Retrofit of an Industrial Warehouse

An existing CMU (concrete block) building being converted to a modern office space.

• Constraint: Uneven substrate and a need for improved thermal performance.

• Decision: An adjustable hat-channel sub-framing system with Insulated Metal Panels (IMPs).

• Effect: The sub-framing levels the wall, while the IMPs provide the cladding, insulation, and air barrier in a single pass.

Planning, Cost, and Resource Dynamics

The economic analysis of metal siding must distinguish between “Installed Cost” and “Lifecycle Value.” While the initial outlay is significant, the lack of painting and caulking requirements over a 50-year span creates a “Maintenance Deficit” that other materials cannot match.

Range-Based Table: Service Life Expectancy

• Economy Exposed-Fastener Steel: 20–30 Years (Replacement of gaskets required at Year 15).

• Architectural Concealed-Fastener Steel: 40–60 Years (Minimal maintenance).

• High-Grade Aluminum or Zinc: 60–100 Years (Virtually permanent in non-aggressive environments).

Tools, Strategies, and Installation Support

1. Turbo Shears / Nibblers: For clean, burr-free cuts. Traditional circular saws can “burn” the factory coating and lead to edge-rusting.

2. Brake Press: Often used on-site to custom-form flashing and trim, ensuring a watertight fit at unique architectural junctions.

3. Butyl Tape / Sealants: Critical for “lapping” joints in low-slope or high-moisture areas.

4. Thermal Spacers: Non-conductive shims placed between the metal girts and the building sheathing.

5. Expansion Clips: Specialized standing seam clips that allow the panel to “slide” as it heats up, preventing oil-canning.

6. Laser Levels: Essential for ensuring the sub-framing is perfectly plumb; metal panels are unforgiving of substrate irregularities.

The Risk Landscape: Failure Modes and Mitigation Top Metal Siding Plans

The failure of a metal siding system is rarely the fault of the metal itself; it is almost always an assembly failure.

• Galvanic Corrosion: This occurs when two dissimilar metals (e.g., aluminum siding and copper flashing) touch in the presence of moisture. An electrical current flows between them, rapidly eating away the “less noble” metal.

• Oil-Canning: A structural phenomenon where the flat part of a metal panel becomes wavy. This is mitigated by selecting heavier gauges, using “striated” or ribbed profiles, and ensuring fasteners are not over-tightened.

• Fastener Gasket Failure: In exposed systems, the rubber EPDM washers eventually dry out and crack. This requires a systematic replacement of thousands of screws every 15–20 years.

• Condensation / Mold: If a metal wall is not properly ventilated, moisture can become trapped behind the panels, leading to rot in the wood sheathing.

Governance, Maintenance, and Long-Term Adaptation

A definitive maintenance plan for metal siding is simple but non-negotiable.

Layered Maintenance Checklist:

• Annual: Inspect all “lap” joints and sealants. Check for debris buildup at the base of the wall (the “kick-out” flashing) that could trap moisture.

• Post-Storm: Check for mechanical damage or loose panels after high-wind events.

• 5-Year Cycle: Wash the facade with a low-pressure water spray to remove atmospheric salts and pollutants that can “eat” the coating over time.

• Adaptation Trigger: If “edge creep” (rust starting at the cut ends of panels) is visible, it must be sanded and touch-up coated immediately to prevent systemic failure.

Measurement, Tracking, and Evaluation Top Metal Siding Plans

Evaluation of a siding system should use both visual and mechanical metrics.

1. Leading Indicators: Torque-testing of fasteners during installation; thermal imaging to check for bridging.

2. Lagging Indicators: Gloss retention measured by a gloss-meter; depth of pits in aluminum in coastal areas.

3. Documentation: Store the “Batch Number” and “Color Code” for the metal coils. If a panel needs replacement 20 years from now, having the exact paint chemistry is the only way to ensure a match.

Common Misconceptions and Technical Corrections

• Myth: “Metal siding makes the house hotter.”

  • Correction: When installed as part of a ventilated rainscreen with “Cool-Roof” pigments, metal siding actually reduces heat gain by reflecting UV and shedding heat through the air cavity.

• Myth: “Metal siding is noisy in the rain.”

  • Correction: This is true for uninsulated barns, but in a residential or commercial assembly with sheathing, insulation, and drywall, the noise is imperceptible.

• Myth: “Rust is inevitable.”

  • Correction: Modern Galvalume and aluminum alloys are engineered to resist rust for half a century. Failure only occurs when the material is cut improperly or paired with incompatible metals.

• Myth: “Metal siding attracts lightning.”

  • Correction: Metal is a conductor, but it does not “attract” lightning more than any other material. If struck, it actually provides a safer, non-combustible path to the ground.

Ethical and Environmental Considerations Top Metal Siding Plans

The sustainability of metal siding is found in its recyclability. Steel and aluminum are among the few building materials that are truly “circular”—they can be melted down and repurposed with no loss of quality. Furthermore, the longevity of metal reduces the “replacement cycle” energy consumption. However, the initial “embodied carbon” of metal production is high. A responsible siding plan balances this by ensuring the material stays on the building for its maximum possible lifespan, spreading that carbon cost over 60 to 100 years.

Conclusion

The selection of top metal siding plans is a commitment to the long-term structural and aesthetic health of a building. It requires a shift in perspective from viewing the exterior as a “finish” to viewing it as a high-performance “barrier.” By understanding the subtle interplay between metallurgy, thermal dynamics, and mechanical fasteners, an architect or property owner can create an envelope that is not only visually striking but also functionally superior. The future of the building envelope lies in this synthesis of industrial strength and architectural refinement—a shield of steel that is as resilient as the structure it protects.
